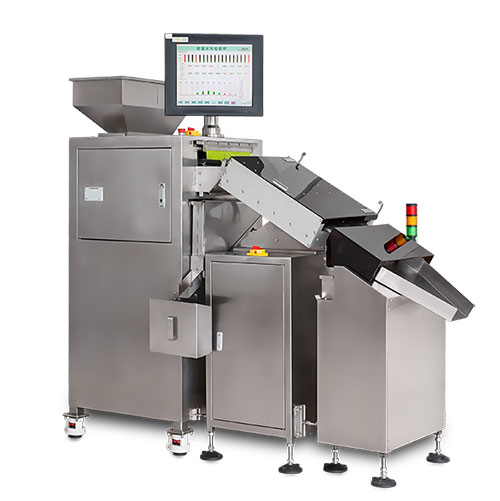

Tablet Checkweigher
Introduction：
? ? SeTAQ tablet checkweigher is a online tablet checkweigher adopting SeTAQ patented tablet slide plate weighing, with high speed, high accuracy. It is composed of 6 * N weighing channels, and can checkweigh the tablet of various sizes without changing the mould.
? ? SeTAQ tablet checkweigher?checks the weight difference of all tablets one by one in the process of tablet pressing production, and automatically rejects the unqualified products that may be judged as inferior medicine, so as to avoid the whole batch being classified as inferior medicine in future spot test due to big variance of individual tablets.
Main Parameters：
????????Weighing range: 10-2000mg; Highest checkweighing speed: 5400 tablets/min; Typical accuracy: 2mg; Highest accuracy: 0.5mg, Resolution: 0.1mg
Structure Features：
?Uses vibratory corrugated plate feeding, so the tablet feeding speed of one chute can reach 140 tablets/min.
Adopts SeTAQ tablet slide checkweighing patent. No need to change the mould to check capsules of various sizes one by one.
Adopts patented SeTAQ detachable slide plate weighing unit. The weighing chute can be disassembled and cleaned without tools, which is very convenient and can ensure the safety of the load cells. One chute can be disassembled within 10 seconds.?
Adopts SeTAQ patented slide weighing frame. The tablet checkweighing speed can be adjusted by setting the vibratory feeding speed or adjusting the inclination angle of the weighing platform. Users can?make a trade-off between speed and accuracy, that is, choose the high accuracy(exceeds the typical accuracy) but with low speed or?vice versa.
All channels have open structure without any closed space, wich is easy to clean the surface contacting with medicines and detect whether they are clean or not with naked eyes. This type of structure can avoide cross contamination between different medicines when multiple capsules share the same capsule checkweigher. Therefore, it is especially suitable for checking and controlling the filling difference when multiple capsules share the same capsule checkweigher. Open structure can also avoid beat dislocation, channel blocking of capsule moving mechanism caused by the deformed capsules, even the situation that unqualified capsules mixed into the qualified ones.
Tabets will not be damaged or seriously worn in the process of feeding, lining up, checkweighing and rejection.?
All channels are made of 316L stainless steel or coated with Teflon, without any other material that may contaminate the capsule.
Function Features：
When the accuracy is 2.0mg, the maximum speed of checkweighing of each channel is the 140 tablets / min.
Calibration of 6 channels can be done within 1 minute.
Unqualified capsules overflow alarm.
All channels in the same interface are displayed with histogram and numerical value at the same time, or a certain channel can be selected and its value will display with large size.
It can display the weight curve and standard deviation of the first 20 tablets.
USB and Ethernet interface with support to Modbus-TCP.
17 inch touch panel, 320 ° rotation, friendly interface, fast response, big memory, high reliability.
HMI interface: English/Chinese.
In addition to U disk export function, also equipped with high-speed printer. So the operator can sign on the paper record for confirmation for permanent storage, which is a method of quality traceability and can not be changed.
| Model No. | Throughput |
Highest Accuracy /mg |
Typical Accuracy /mg |
|
| Tablet Checkweigher | Tablets/Min | Tablets/Hour | ||
| T600 | 600 | 36,000 | 0.5 | 2 |
| T1200 | 1200 | 72,000 | 0.5 | 2 |
| T1800 | 1800 | 108,000 | 0.5 | 2 |
| T2400 | 2400 | 144,000 | 0.5 | 2 |
| T3600 | 3600 | 216,000 | 0.5 | 2 |
| T7200 | 7200 | 432,000 | 0.5 | 2 |
